商品の詳細:
|
| キーワード: | UVLED固化装置 | 力: | 600W |
|---|---|---|---|
| 入力電圧: | AC85-265V | 波長: | 395nm 385nm |
| 冷却方法: | 水冷 | UV強度: | 18W/CM2 |
| 保証: | 2年 | パッケージ: | 木製のケース |
| ハイライト: | 600W UV LED curing equipment,395nm wavelength UV ink curing,high power UV curing machine |
||

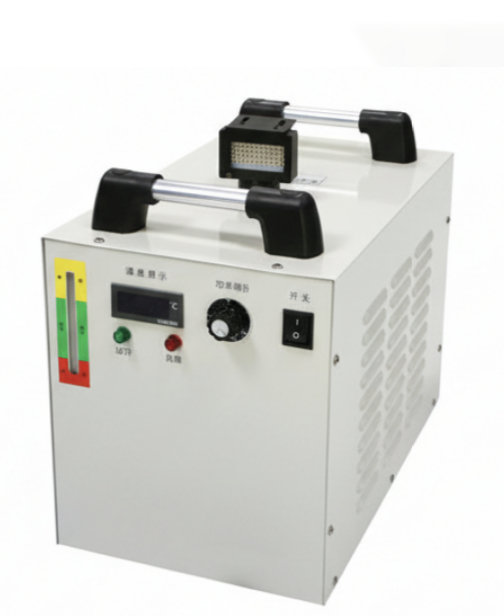

High Power Uv Led Module 600W 395nm Wavelength For UV Ink Curing
UV LED Curing Equipment Description
"LED" UV curing technology is a modern and efficient method for drying UV-sensitive materials like resins, inks, varnishes, adhesives, and coatings. This innovative technique uses LED lights to emit ultraviolet radiation, providing a fast, high-performance solution that's widely adopted today.
UV LED Curing Equipment Datasheet
|
Model
|
CG-CT3-26027-600A | lamp color |
Rose golden |
|
Power |
600W |
Chip brand |
LG/Seoul |
|
Input voltage |
AC85-265V |
Wave length |
365/385/395/405nm |
|
Application |
UV ink/vanish/coating /adhesive curing |
Life span |
20000H |
|
Cooling way |
Water cooling |
Emitting window size |
customized |
|
UV intensity |
18W/CM2 | Dimmable | 0%-100% |
|
Best emitting distance |
30-50mm | Package | wooden case |
UV LED Curing Equipment Advantages
UV LED Curing Equipment FAQ:
Q1: What’s the wavelength of the leduv lamp ?
A1: Usually 395-405nm The 395nm/385nm is used for printing machine ,365 nm is for adhesive.
Q2: What’s your led brand ?
A2:LG/Seoul
Q3: What’s the material of lamp and lens ?
A3: Aluminium /quartz
Q4: What’s the cooling way for the leduv curing system ?
A4: Water or air cooling
Q5: The uv intensity can be change?
A5: Yes, the uv intensity is changeable from 0%-100%
Q6: What’s the max energy of uvled lamp ?
A6: It’s depend on emitting time , the longer the higher energy output total amount.
Q7: What’s the lifespan of the uvled curing lamp ?
A7: Our warranty is 2yeas for all system (Chiller /power supply ) mostly can reach 5yeas
