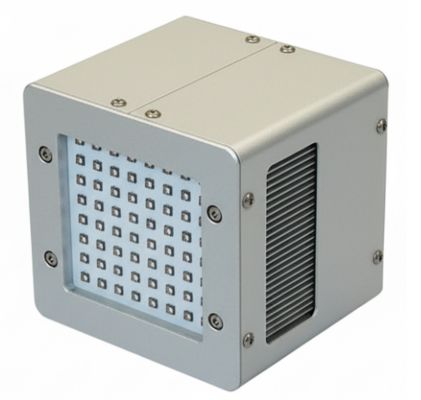

Advanced 18W/CM2 UV LED Curing Equipment for Environmentally Friendly Drying with No Heat Radiation

Advanced 18W/CM2 UV LED Curing Equipment for Environmentally Friendly Drying with No Heat Radiation

UV LED Curing Equipment Description

" LED" UV curing lamp is a new technology and way emitting ultraviolet ray radiation to dry UV series materials resin/ink/varnish/adhesive/coating etc with fast speed and good peformance in nowadays .

In recent years, conventional mercury arc lamps have proven to have some disadvantages, especially for the environment. They produce ozone and require exhaust systems to help keep the air from becoming polluted. These UV curing systems also require a lot of energy to operate and generate a lot of heat. As mentioned earlier, they also involve the use of mercury with long-term environmental impacts.

Opting for UV LED curing gives you all the advantages of traditional curing while being environmentally friendly. This technology reduces heat and provides instant power, with no moving parts. The result is a significant reduction in energy consumption and operating costs.

UV LED Curing Equipment Datasheet

UV LED Curing Equipment Advantages

1. Energy-saving ,normally 1000W LEDUV equal to 6000W mercury lamp drying effect .
2. Environment friendly , No mercury. No ozone making and VOC discharge.
3. NO warm-up , turn on/off instantly.
4. Low temperature, can be used for PE and film ink cuing .
5. Long lifespan, 20000hours .

UV LED Curing Equipment FAQ:

Q1: What’s the wavelength of the leduv lamp ?

A1: Usually 395-405nm The 395nm/385nm is used for printing machine ,365 nm is for adhesive.

Q2: What’s your led brand ?

A2:LG/Seoul

Q3: What’s the material of lamp and lens ?

A3: Aluminium /quartz

Q4: What’s the cooling way for the leduv curing system ?

A4: Water or air cooling

Q5: The uv intensity can be change?

A5: Yes, the uv intensity is changeable from 0%-100%

Q6: What’s the max energy of uvled lamp ?

A6: It’s depend on emitting time , the longer the higher energy output total amount.

Q7: What’s the lifespan of the uvled curing lamp ?

A7: Our warranty is 2yeas for all system (Chiller /power supply ) mostly can reach 5yeas
