Industrial UV LED Curing Chamber for Smart Device Camera Module Manufacturing

Industrial UV LED Curing Chamber for Smart Device Camera Module Manufacturing
Industrial UV LED Curing Chamber for Smart Device Camera Module Manufacturing Industrial UV LED Curing Chamber for Smart Device Camera Module Manufacturing Industrial UV LED Curing Chamber for Smart Device Camera Module Manufacturing

大画像 :  Industrial UV LED Curing Chamber for Smart Device Camera Module Manufacturing

商品の詳細:
起源の場所: 中国
ブランド名: CG
証明: CE*RoHS
モデル番号: CG-CHX-300*300mm -1000A/c
お支払配送条件:
最小注文数量: 1セット
価格: 1800usd 1 set
パッケージの詳細: 木製ケース
受渡し時間: 10～15営業日
支払条件: LC、T/T
供給の能力: 10セット/日
連絡先

Industrial UV LED Curing Chamber for Smart Device Camera Module Manufacturing

説明
キーワード: UV硬化チャンバー 力: 1000W
入力電圧: AC85-265V 波長: 365/385/395/405nm
冷却方法: 空冷 UV強度: 2W/cm2
保証: 1年 パッケージ: 木製ケース
ハイライト:

Industrial UV LED curing chamber

,

UV curing chamber for camera modules

,

Smart device manufacturing UV chamber

Industrial UV LED Curing Chamber for Smart Device Camera Module Manufacturing
Precision UV Curing Solution for Camera Module Bonding, Lens Assembly & Image Sensor Packaging

The Super Curing Industrial UV LED Curing Chamber is engineered for high-precision UV adhesive curing in smart device camera module manufacturing. Designed to meet the demanding requirements of smartphone cameras, automotive vision systems, AI cameras, security cameras, AR/VR optics, and wearable devices, this enclosed UV LED curing system delivers exceptional curing uniformity, low thermal impact, and highly repeatable process control.

Using advanced UV LED technology, the curing chamber provides instant-on operation, stable UV output, and programmable curing profiles to ensure reliable adhesive bonding without affecting sensitive optical components or image sensor performance. It is an ideal solution for camera module assembly, lens bonding, filter attachment, image sensor packaging, and other precision optoelectronic manufacturing processes.

UV Curing Chamber Specifications
Model CG-CHX-300*300mm -1000A/C Lamp Color White/black
Power 1000W Chip Brand LG/Seoul
Input Voltage AC85-265V Wavelength 365/385/395/405nm
Application UV ink/varnish/coating/adhesive curing Life Span 20000H
Cooling Way Air cooling Emitting Window Size 300*300mm
UV Intensity 2W/CM² Dimmable 0%-100%
Best Emitting Distance 30-50mm Package Wooden case
UV Curing Chamber Advantages
  • Energy-saving, normally 1000W LED UV equals to 6000W mercury lamp drying effect
  • Environment friendly, No mercury. No ozone making and VOC discharge
  • No warm-up, turn on/off instantly
  • Low temperature, can be used for PE and film ink curing
  • Long lifespan, 10000 hours
Product Features
Precision Optical System
Engineered optical lenses deliver highly uniform UV distribution for consistent adhesive curing.
Intelligent Touch Screen Control
Easy operation with programmable curing recipes and real-time monitoring.
Functions include:
  • Timer setting
  • Intensity adjustment
  • Recipe storage
  • Production counter
  • System diagnostics
Efficient Air Cooling System
Advanced forced-air cooling maintains stable operating temperatures for continuous production without overheating.
Multiple UV Wavelength Options
Available wavelengths include:
  • 365nm/385nm/395nm/405nm
Customized wavelengths are available for specific UV adhesive formulations.

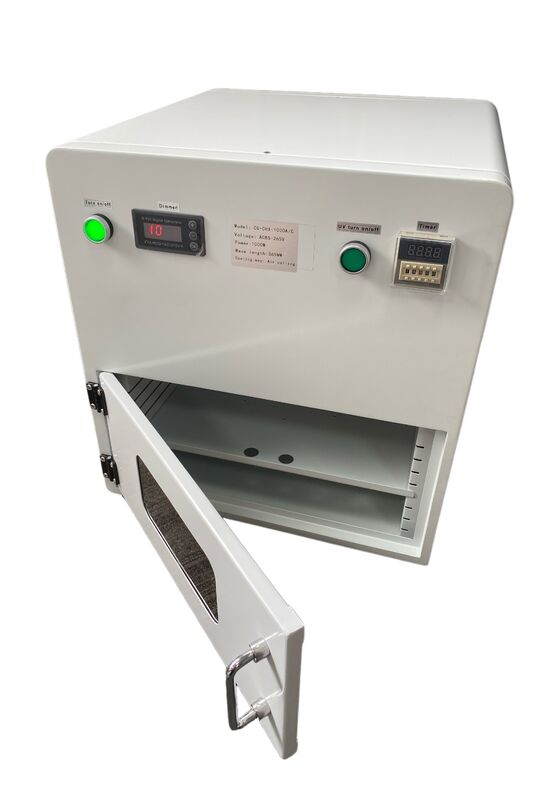

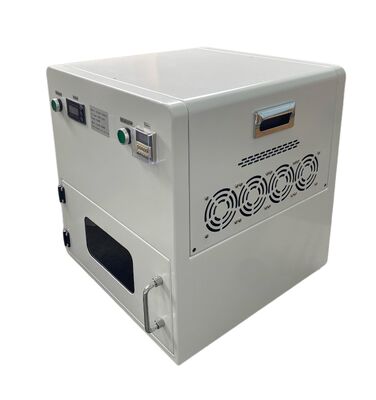

UV LED Curing Chamber front view UV LED Curing Chamber interior view UV LED Curing Chamber control panel UV LED Curing Chamber in operation
Typical Applications
Smartphone Camera Modules

High-speed curing for autofocus camera modules, multi-camera systems, and ultra-thin smartphone cameras.

Automotive Cameras

Suitable for ADAS cameras, surround-view cameras, reversing cameras, and driver monitoring systems requiring high reliability.

AI Vision Cameras

Designed for industrial machine vision, AI recognition cameras, and intelligent imaging systems.

Security & Surveillance Cameras

Precision adhesive curing for HD surveillance cameras, IP cameras, and smart monitoring devices.

AR / VR Optical Modules

Supports assembly of compact optical components used in augmented and virtual reality devices.

Wearable Electronics

Ideal for smart watches, smart glasses, and compact imaging modules requiring precision bonding.

UV Curing Chamber FAQ
Q1: What's the wavelength of the LED UV lamp?
A1: Usually 395-405nm. The 395nm/385nm is used for printing machine, 365 nm is for adhesive.
Q2: What's your LED brand?
A2: LG/Seoul
Q3: What's the material of lamp and lens?
A3: Aluminium/quartz
Q4: What's the cooling way for the LED UV curing system?
A4: Water or air cooling
Q5: The UV intensity can be changed?
A5: Yes, the UV intensity is changeable from 0%-100%
Q6: What's the max energy of UV LED lamp?
A6: It depends on emitting time, the longer the higher energy output total amount.
Q7: What's the lifespan of the UV LED curing lamp?
A7: Our warranty is 2 years for all system (Chiller/power supply) mostly can reach 5 years.
Why Choose Super Curing?
  • 13+ Years of UV LED Curing Experience
  • Custom UV Solutions for Industrial Manufacturing
  • Fast Sample Testing & Process Validation
  • Global OEM & ODM Support
  • CE & RoHS Certified Products
  • Experienced Engineering Team
  • Worldwide Technical Support
  • Rapid Delivery for Standard Models
Request a Custom UV Curing Solution
Whether you are developing next-generation micro speakers, MEMS acoustic devices, TWS earphones, or other precision electronic assemblies, Super Curing provides tailored UV LED curing solutions designed to maximize production efficiency and product reliability.
